What can ML tools and simulations do for (radio) cosmology ?
(Or what keeps me busy in Switzerland)
Nicolas Cerardi
- Physics-Informed Neural Networks for continuous CDM simulations
- Constraining the reionization history with higher-order statistics and simulation-based inference
- Satellites mega constellations and the Square Kilometre Array Observatory
- Physics-Informed Neural Networks for continuous CDM simulations
With Emma Tolley & Ashutosh Mishra
The dynamics of CDM
- Cold Dark Matter obeys the Cosmological Vlasov Poisson equations: $$ \frac{\partial f}{\partial t} + \vec{v} \cdot \vec{\nabla}_x f - \vec{\nabla}_x \Phi \cdot \frac{\partial f}{\partial \vec{v}} = 0 $$ $$ \nabla^2_x \Phi = 4\pi G a^2 \bar{\rho}(\tau) \delta(\vec{x}, \tau) $$

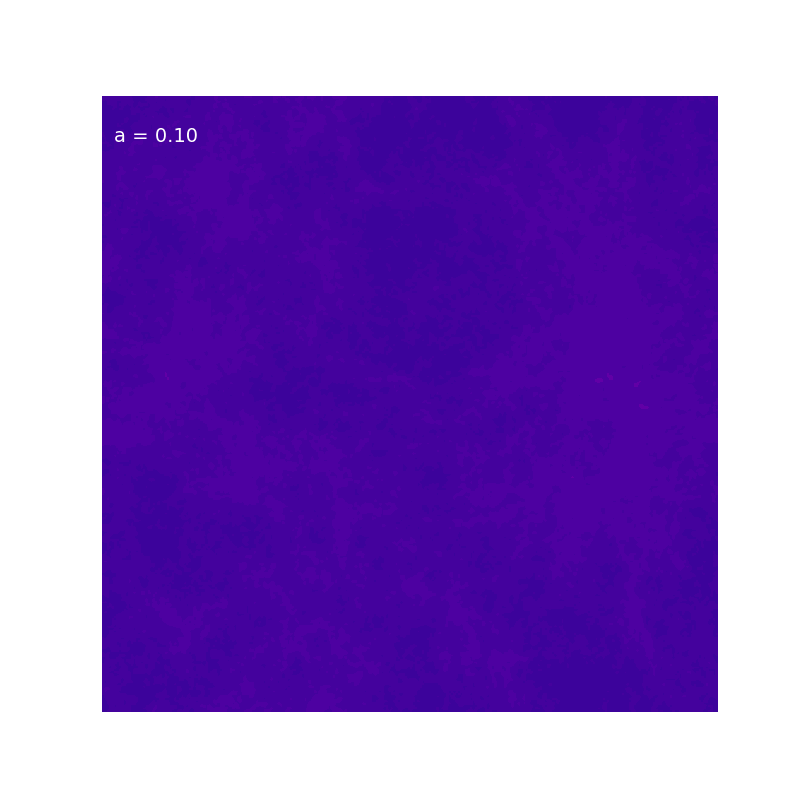

1D CDM simulation

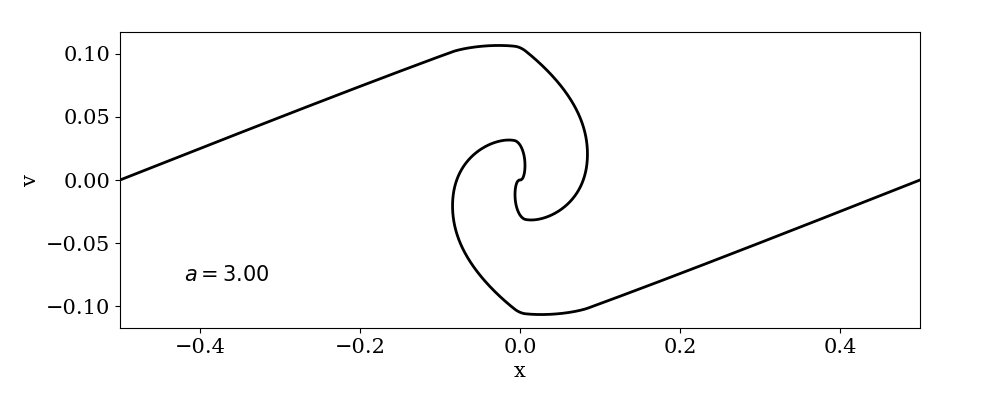

Phase-space distribution
- Cold DM occupies a 1D submanifold in the 1+1D phase-space
- Multi-stream flow after shell-crossing

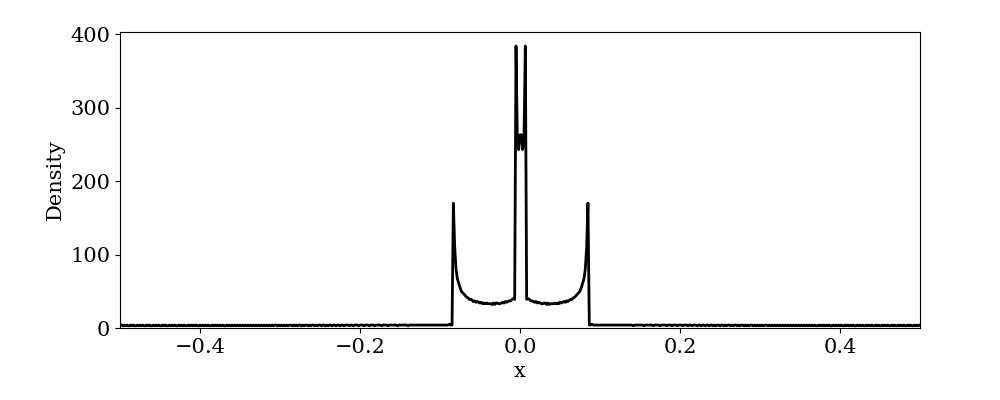

Density

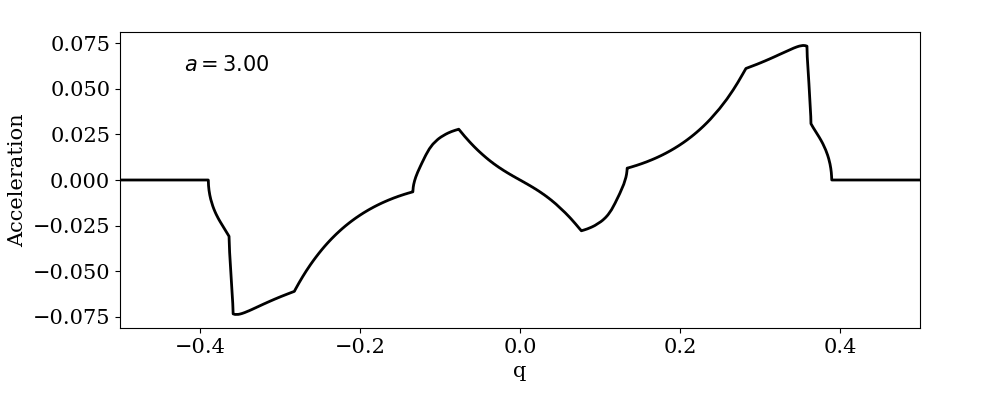

- Singularities arise at shell-crossing locations
- They affect the CDM dynamics (Poisson equation)
Routes to CDM simulations
- N-body codes employ particles instead of a fluid
- This leads to discreteness errors (2-body interactions)
Can we find an alternative to N-body simulations ?
Since CDM occupies a low-dimensional submanifold, we can completely describe the dynamics using the displacement field $\zeta(q,\tau)$:
$$ x(q,\tau) = q + \zeta(q,\tau) $$
With the equation of motion:
$$ \frac{\partial^2 \zeta}{\partial \tau^2}
+ \frac{3}{2\tau} \frac{\partial \zeta}{\partial \tau}
= - \frac{3}{2\tau} \frac{\partial \phi}{\partial x}$$
Can a neural network learn the solution ?
Physics Informed Neural Networks (PINNs)
PINNs: simulations seen as an optimisation problem
- Use a neural network to learn the solution of a PDE
- Network optimisation is guided by the physical constraints (PDE + boundary)
- Fully unsupervised $\Longrightarrow$ independent from N-body
- Provides a continuous representation of the solution, not just particles !

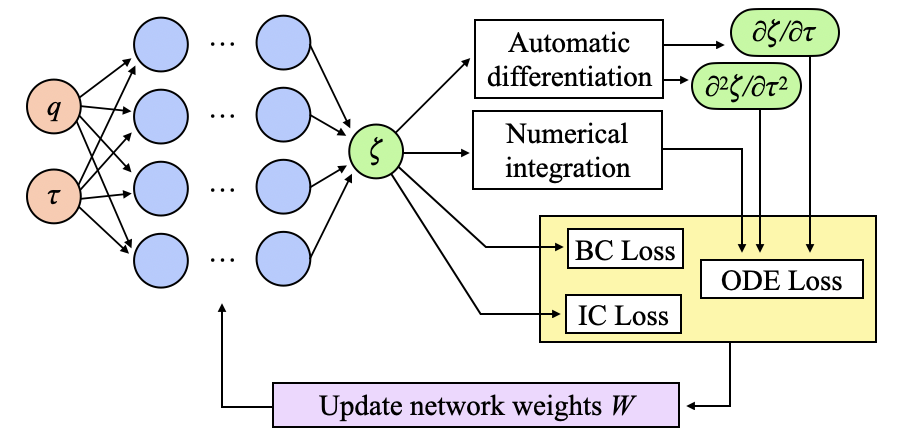

Physics Informed Neural Networks (PINNs)
PDE
- Numerical integration allows to calculate $\nabla_x \phi$
- Auto-diff provides access to the remaining term of the PDE (velocity and acceleration)
Boundary
- Initial conditions given from the Zel'dovich Approximation
- Boundary conditions set to 0
Which neural architecture can we use ?
- Sharp features in acceleration due to the shell-crossings.
- Our first attempts with MLPs failed to captures these.
- We also tested more complex activation functions.
- We need an architecture that provides high flexibility down to the 2nd derivative of the network output
Kolmogorov-Arnold Networks (KANs)
- The Kolmogorov-Arnold representation theorem: any multivariate function can be approximated by a combination of (many) flexible univariate functions
- Allows an efficient parameterization of the target function

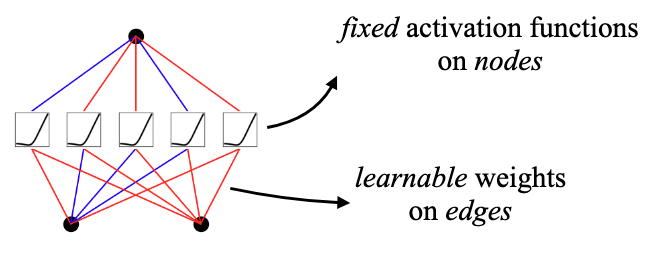

Regular MLP
[Liu+25]

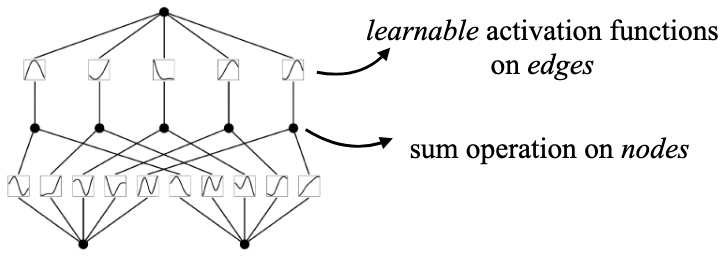

Kolmogorov-Arnold Network
Edges are combination of 3rd-order B-splines
$\Rightarrow$ Physics-Informed KANs (PIKANs!)
PIKAN implementation
- We use a [8, 12, 8, 1] KAN architecture (~4500 parameters)
- We employ independent KANs on consecutive time chunks
- $ \zeta_0 $ is the Zel'dovich approximation
- $ \zeta_i $ are the KANs trained on previous chunks
- $ \zeta_k $ is the KAN operating at $\tau$
Results

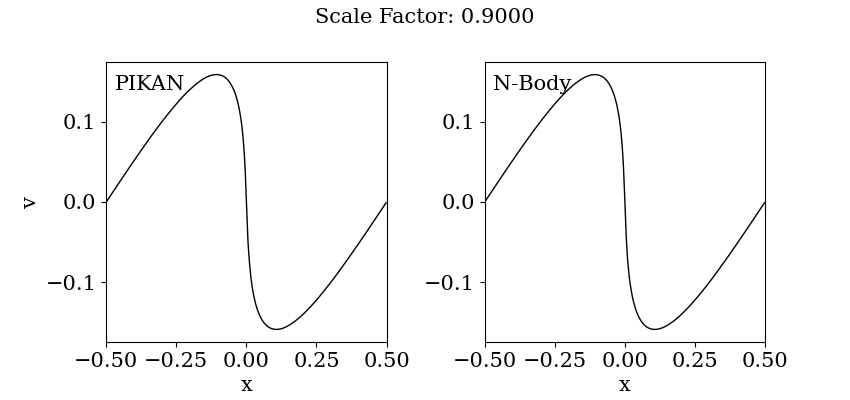

Results : Phase-space
A very good visual agreement, up to 6 shell-crossings !
Results : displacement, velocity and acceleration
Errors w.r.t a high resolution N-body simulation
Error is less than 2% on the displacement
Results : density profiles
- Density profiles are in good agreement
- In the core, N-body profiles are noisy
- The PIKAN provides a smoother solution (too much?)
Caveats
- Training time is quite long (several hours per time chunk on a single GPU)
- While the learnt representation is defined continuously, we still need to sample points for the numerical integration of $ \nabla_x\phi $
- (for now a 1D single halo collapse)
What else can we do with such a tool ?
- Unlike a N-body sim that advances timestep per timestep, in the PINN framework the optimisation is performed simultaneously over time.
- $\Rightarrow$ We can set the "initial conditions" at any $\tau$
Results : Backward simulation
- Test case: reverse time through 2 shell crossings.
- Start from high-resolution N-body data at $\tau_{end}$, optimise to retrieve the underlying initial conditions.
Input: $ (\zeta, \dot{\zeta}, \ddot{\zeta})$
Input: $ (\zeta, \dot{\zeta}, \delta(x))$
CDM PIKAN - Takeaways
- We presented a new method to simulate CDM, independent from N-body simulations.
- PIKANs allows a continuous and differentiable modelling of the dynamics.
- It is possible to run the simulation backward to retrieve the initial conditions.
- Future work: higher dimensions, complex ICs...
[Cerardi, Tolley and Mishra, MNRAS, 2025]
Implicit inference of the reionization history with higher-order statistics of the 21-cm signal
With the SEarCH team: Sambit Giri, Michele Bianco, Davide Piras, Emmanuel de Salis, Massimo de Santis, Merve Selcuk-Simsek, Philipp Denzel, Kelley Hess, Carmen Toribio, Franz Kirsten & Hatem Ghorbel
- Participated to the SKA Data Challenge 3b: Inference

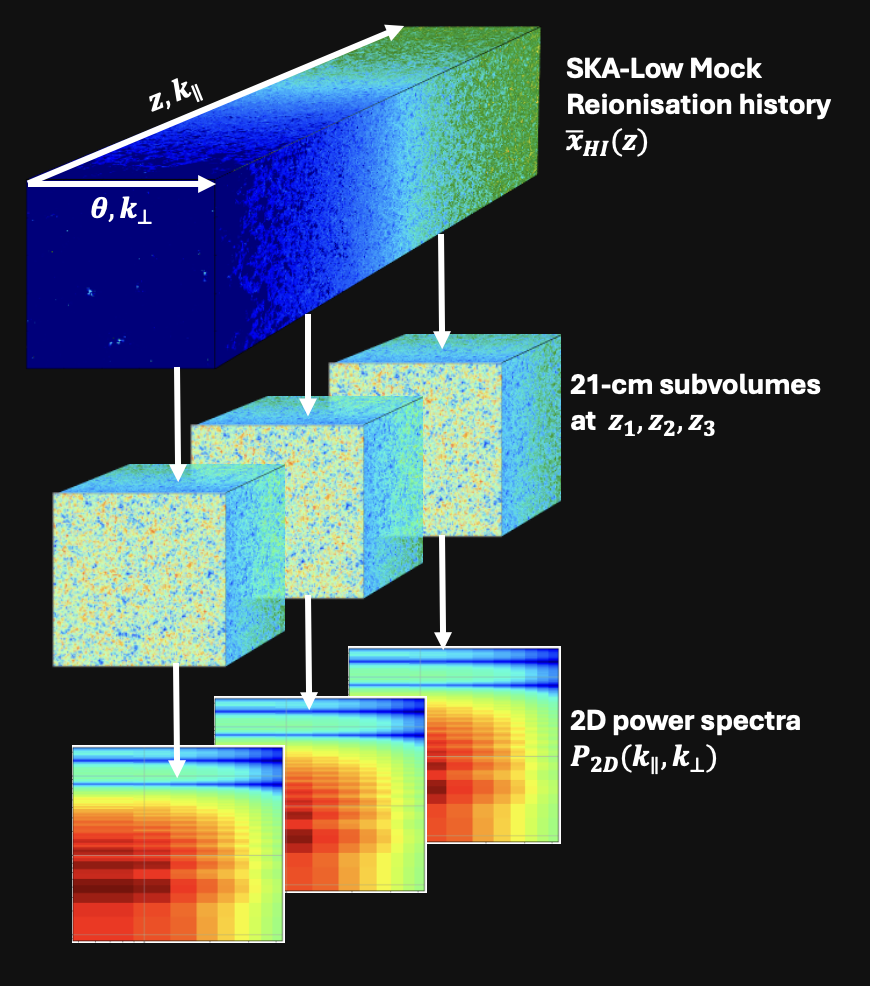

- Goal: infer the neutral fraction $ \bar{x}_{\rm HI} $ in SKA-Low mocks at three different $ z $ to constrain the Epoch of Reionisation
Our strategy
-
Created a large dataset of ~16000 SKA-Low mocks
- Included instrumental noise but no foregrounds
-
Trained 2 independent DL approaches
- Regression task on $ \bar{x}_{\rm HI} $ with deep CNNs
[De Salis+25]
- Bayesian inference with Simulation-based Inference (SBI)
- Regression task on $ \bar{x}_{\rm HI} $ with deep CNNs

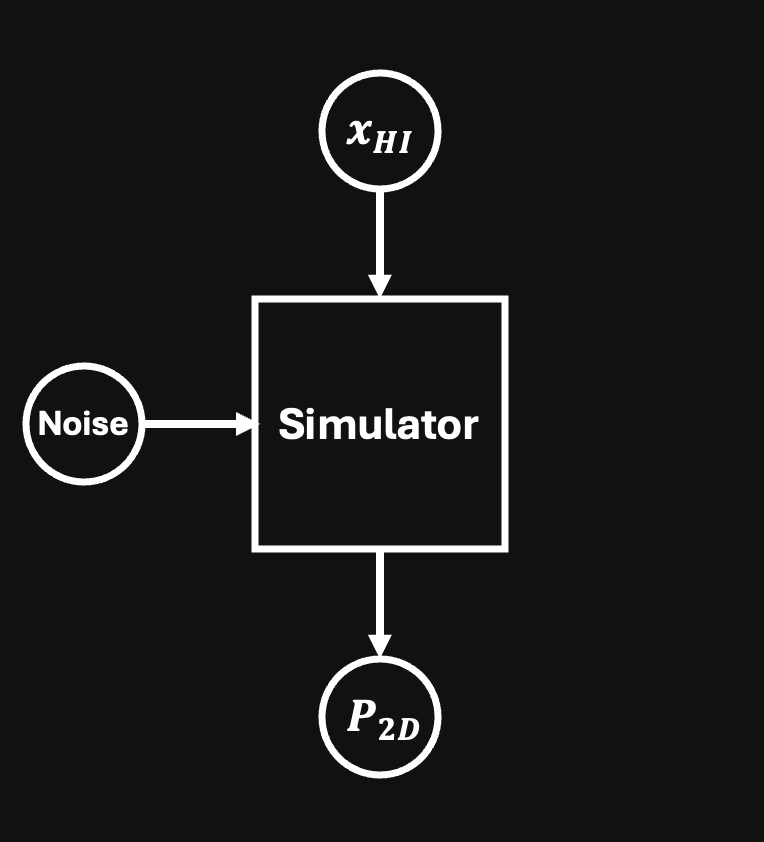

"I have a complex and noisy model which doesn't provide an explicit likelihood"
$ \Rightarrow $ learn the posterior directly from simulations !
$ \Rightarrow $ learn the posterior directly from simulations !

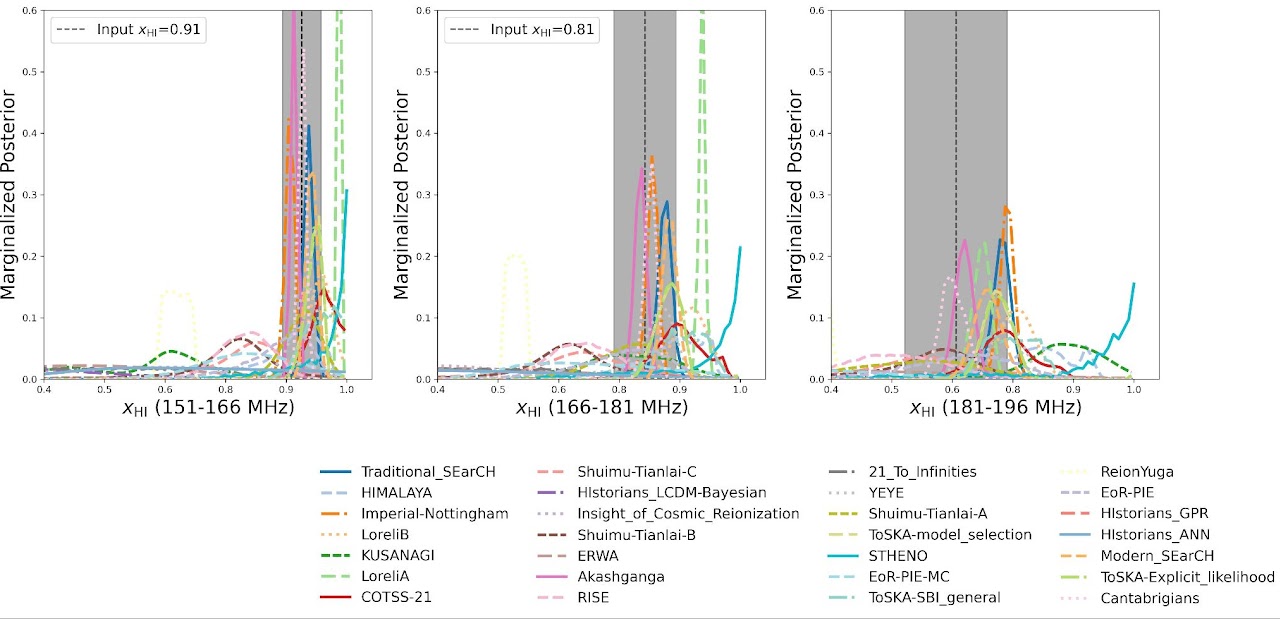

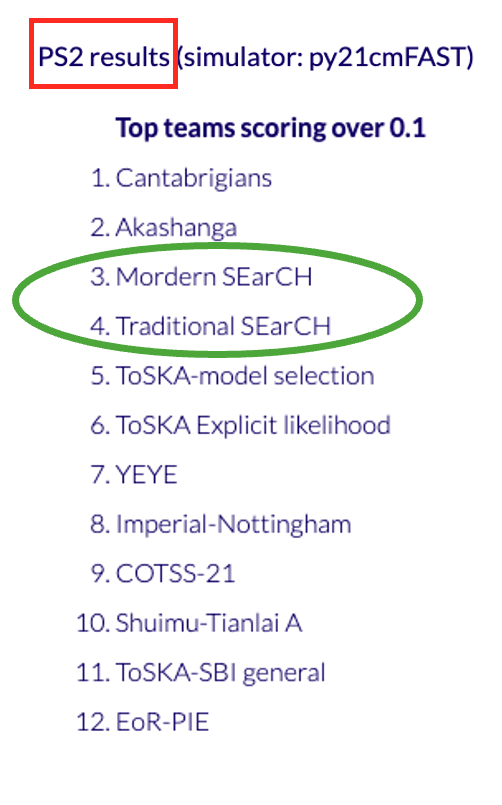

- Obtained great results on the PS2 data 🎉

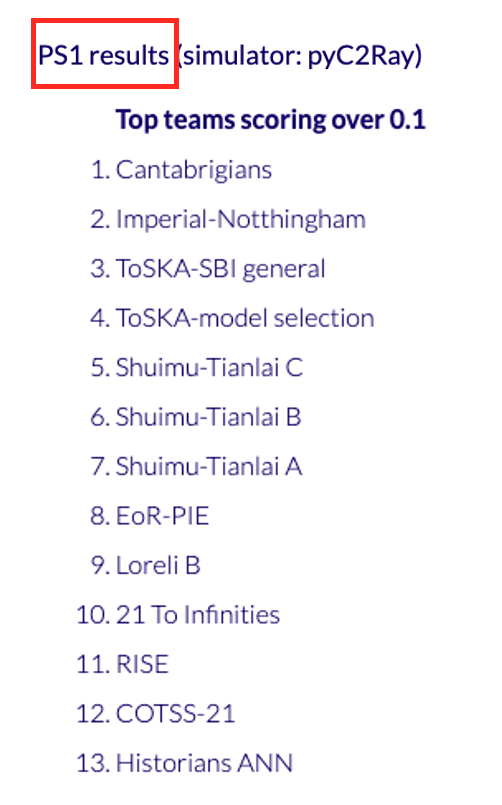

- But not ranked on the PS1 data
Going beyond the data challenge
- Computing higher-order statistics from our mock simulations
- Combining them within our SBI framework
- Provide statistically robust results
- Rejecting extreme reionisation cases
- Dataset expanded x2 with more noise realisation applied on the mocks
- Test the noise-level dependence: 100h and 1000h SKA-Low noise considered
- More statistics computed from the mocks

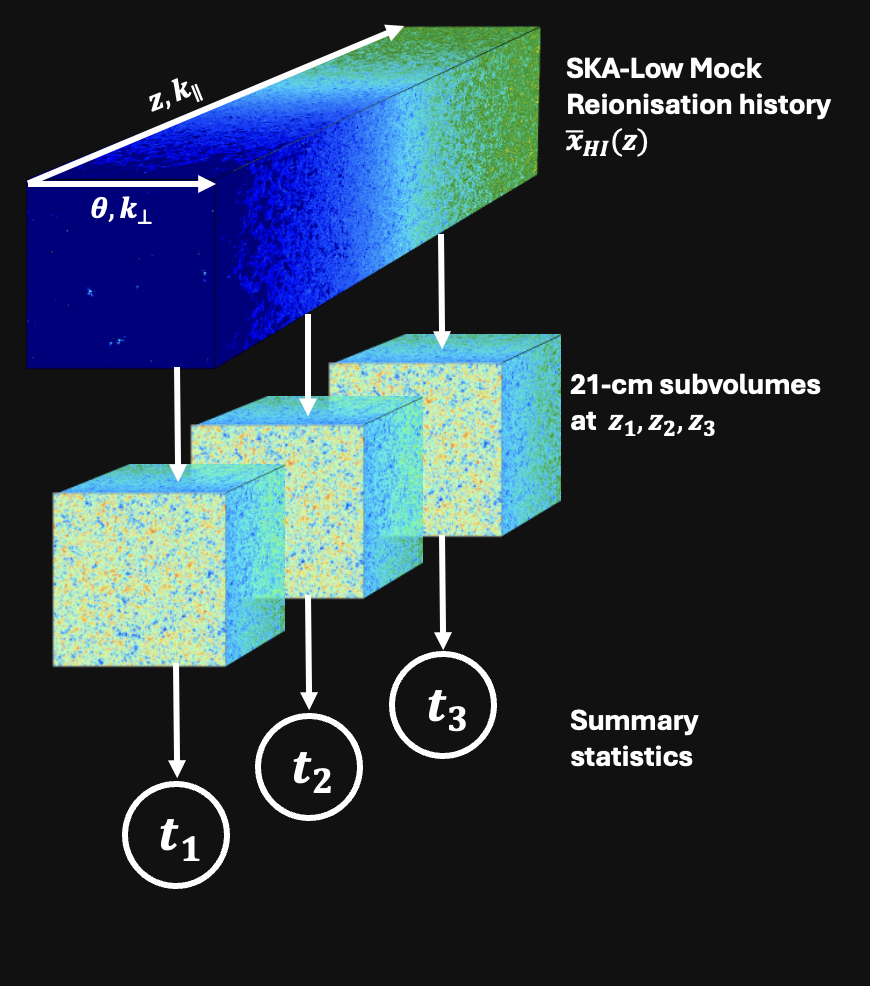

We compute several kinds of statistics $ t $ from the 21cm cubes
2pt statistics

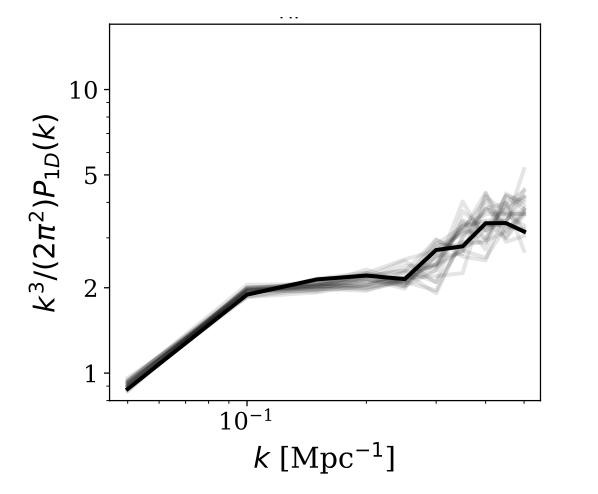

1D Power Spectrum

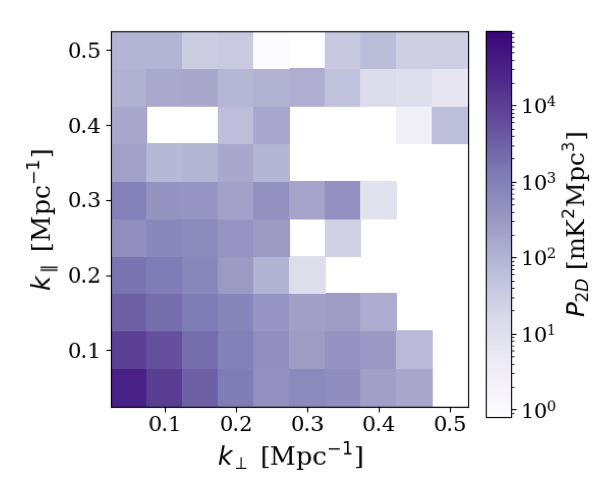

2D Power Spectrum
Higher-order statistics

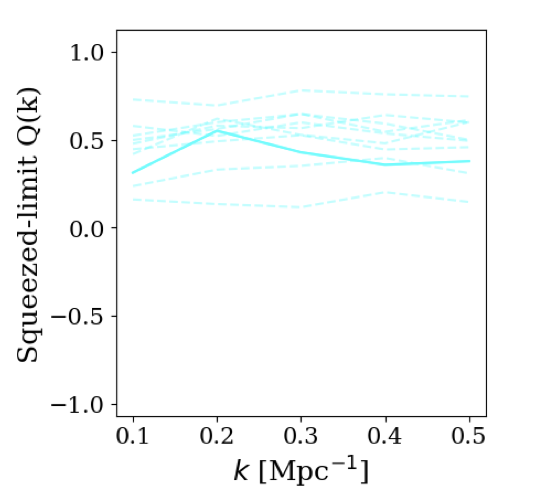

Bispectrum (equilateral & squeezed)

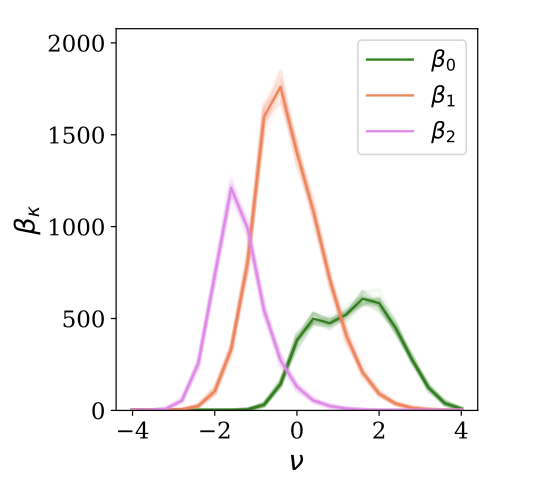

Betti numbers (topological invariant)
+ combinations of these metrics
- $ \bar{x}_{\rm HI} $ is an output of the simulation: we do not directly sample it
- Prior on $ \bar{x}_{\rm HI} $ is implicit and non-trivial
- Direct neural posterior estimation is the way to go !
\[\begin{aligned}
p(\bar{x}_{\rm HI} | t) & \propto p(\bar{x}_{\rm HI}) p(t | \bar{x}_{\rm HI}) \\ & \propto q_\phi (\bar{x}_{\rm HI} | t)
\end{aligned} \]
- We are model-dependent on both the prior and the likelihood

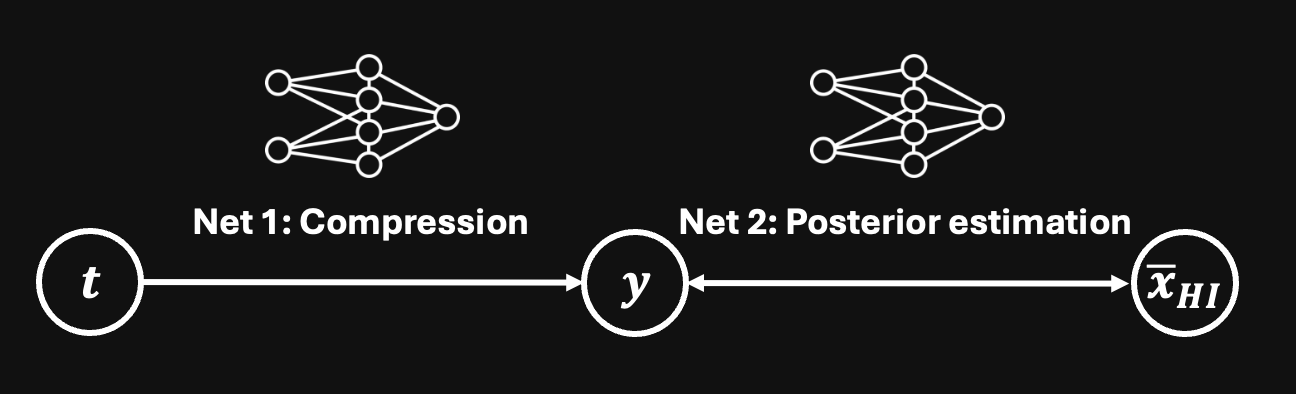

We apply Variational Mutual Information Maximization (VMIM, Jeffrey+20) to learn $ p(\bar{x}_{\rm HI} | t) $ by:
- Compressing the stacked statistics $ [t_1, t_2, t_3] $ into a 3D vector $ y $
- Maximizing the mutual information between $ y $ and $ \bar{x}_{HI} $

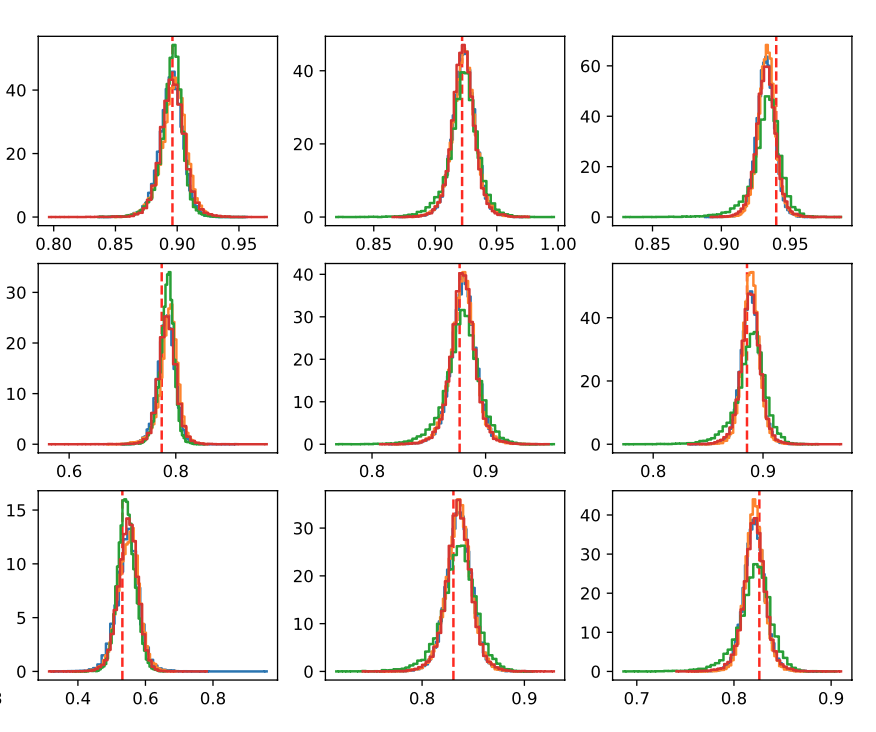

- For each case we train 20+ models to check for the stability of our approach
- We systematically perform coverage tests and select the best model for each case
Test of Accuracy with Random Points (TARP) runs on the validation set for different cases
- $ \sigma(\bar{x}_{\rm HI}) $ decreases by ~40% from 100h to 1000h (but very statistic dependent)
- PS2D + higher order stats: $ \sigma(\bar{x}_{\rm HI}) $ decreases by ~60% at 100h and ~40% at 1000h
- Betti numbers are more informative towards the end of EoR
- Power spectrum is more constraining in the early EoR
- Bispectrum mildly contributes to early EoR constraints
SBI for EoR - Takeaways
- Based on our work for SDC3b, we investigated the reionisation history through several summary statistics
- We employed 2-pt statistics (1D and 2D power spectra) with higher order statistics (bispectrum and Betti numpers)
- We applied a SBI framework to infer parameters from these statistics
- Betti numbers (alone and combined with others) are particularly promising
- We also identify different regimes of relevance for each statistic
[Cerardi et al., submitted to MNRAS, 2025]
Satellites mega constellations and the Square Kilometre Array Observatory
With Emma Tolley, Federico di Vruno and Chris Finlay
Alan Dyer / amazingsky.com

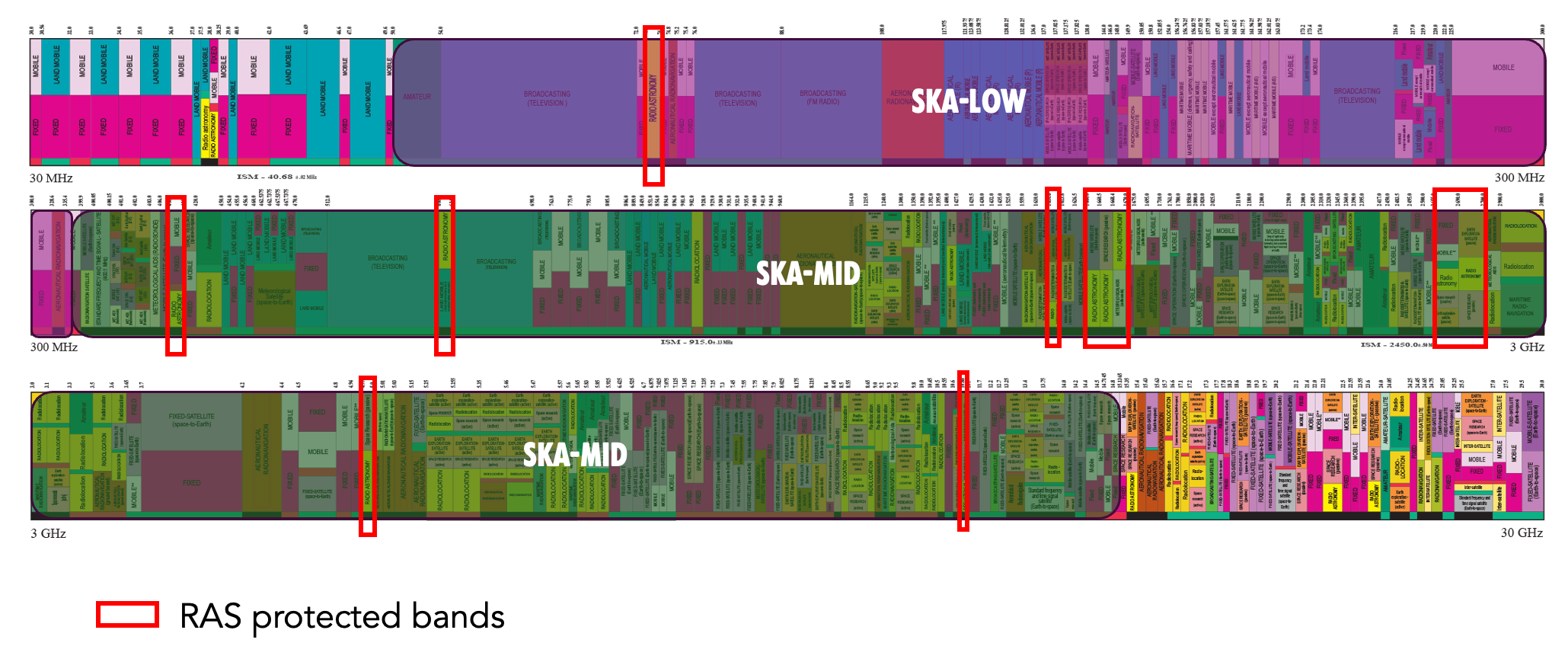

- Intended emissions (in ITU-R allocated bands)
- Reflection from sunlight and terrestrial sources
- Unintended Electromagnetic Radiation (UEMR)

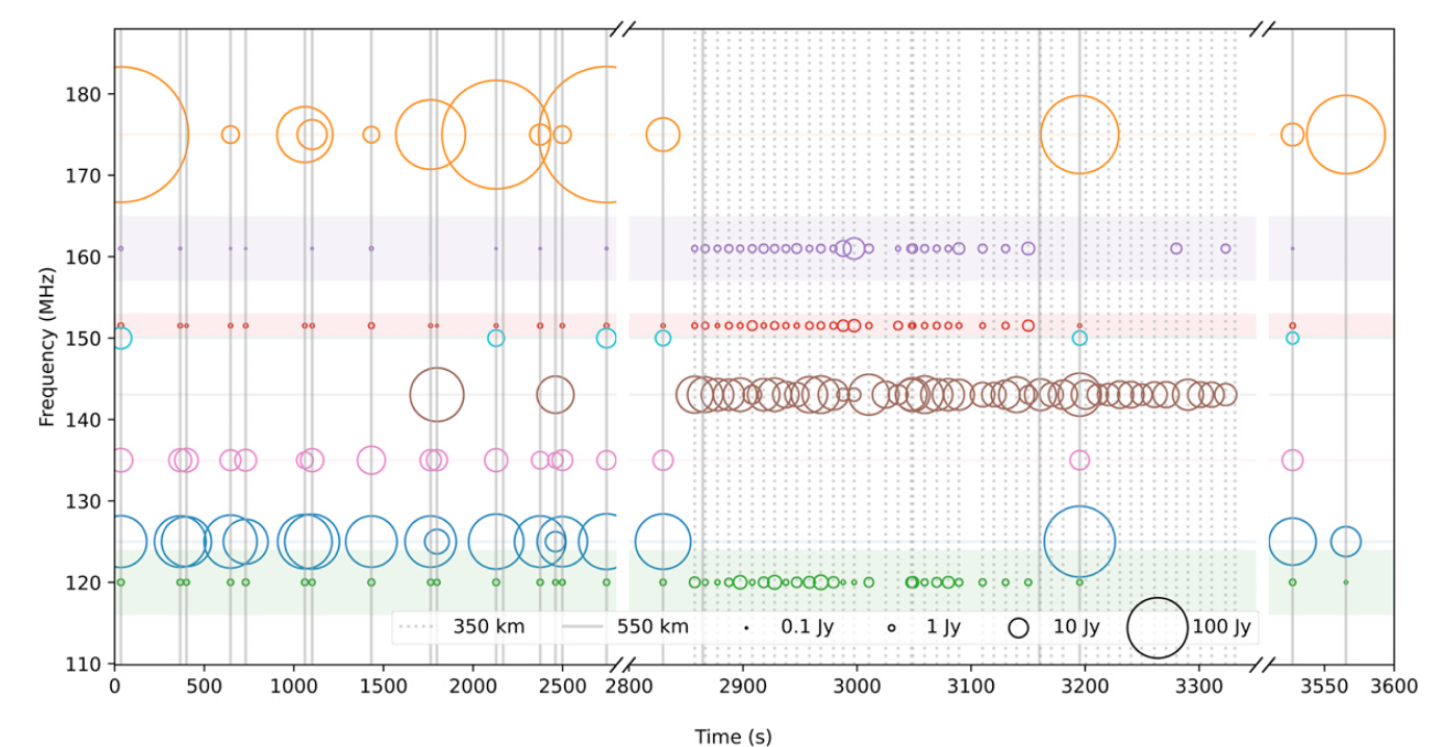

Starlinks: both spectral lines and broad band features at low freqs [Di Vruno+23]
Today
- Starlink: 9000+
- Oneweb: ~700
In 5-10 years
- Starlink: ~40000
- Oneweb: 720
- GuoWang: ~12000
- QianFan: ~1300
- Leo: ~3000
- Propagating orbits for 50 000 satellites is computationally expensive...

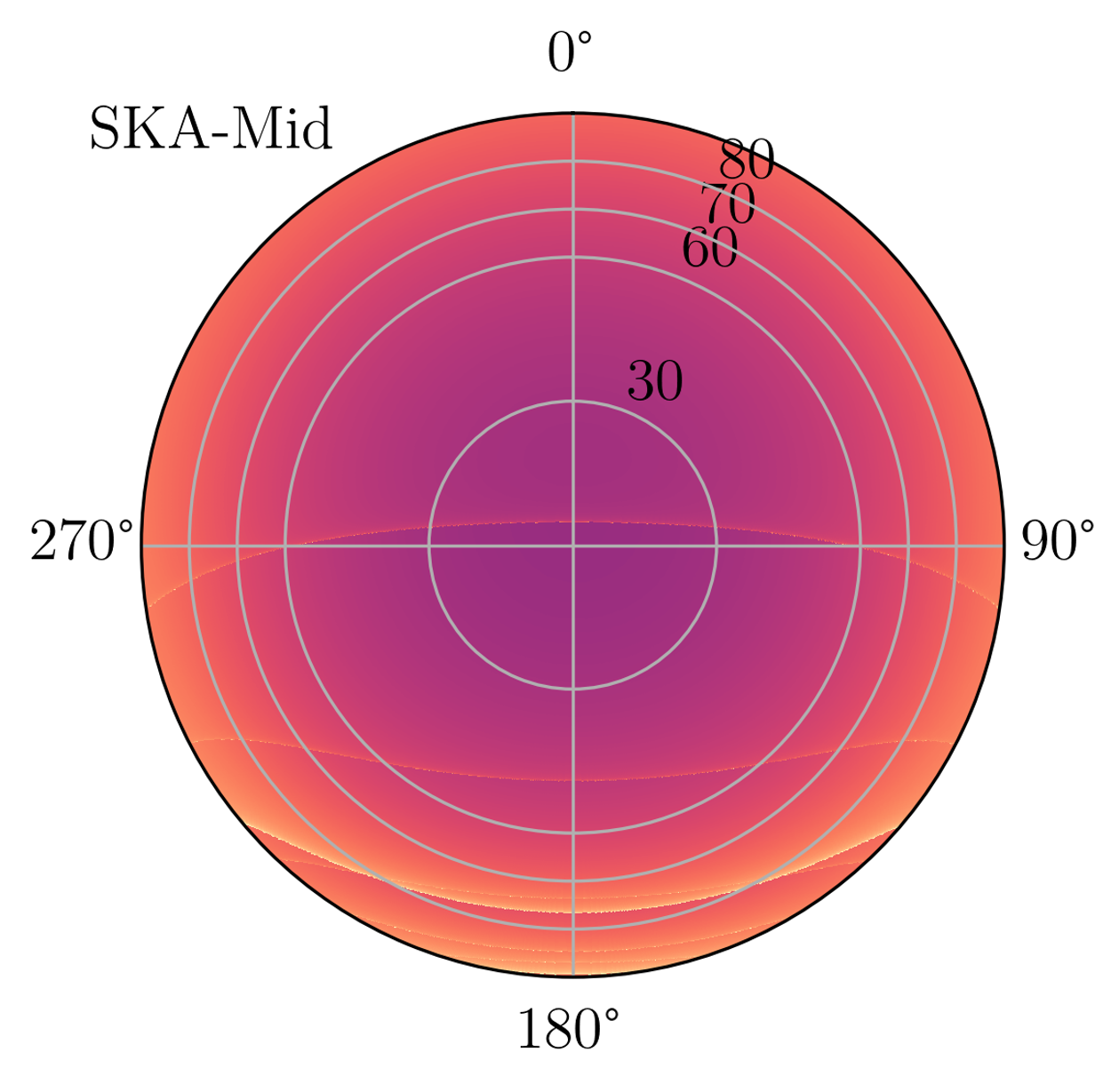

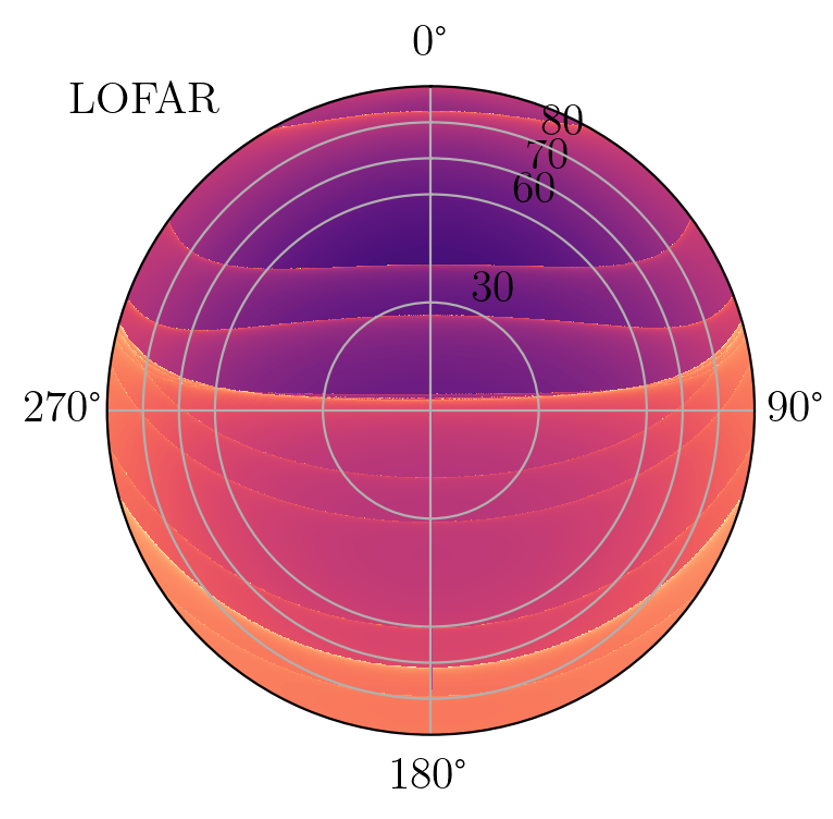

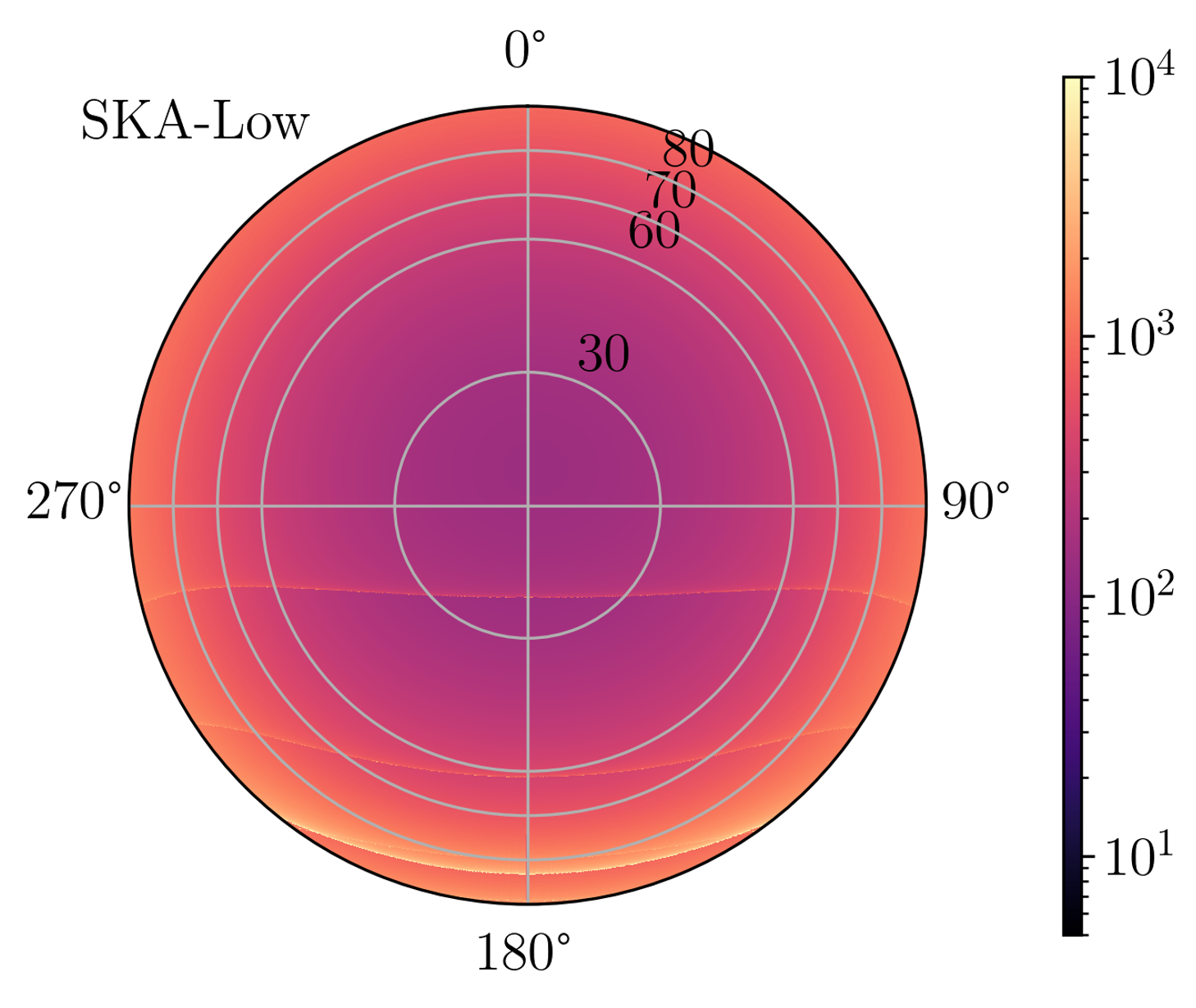

- Instead, we can model the density of satellite in the sky with an analytical model from [Bassa+2021]
- Sharp features correspond to the edges of satellite shells

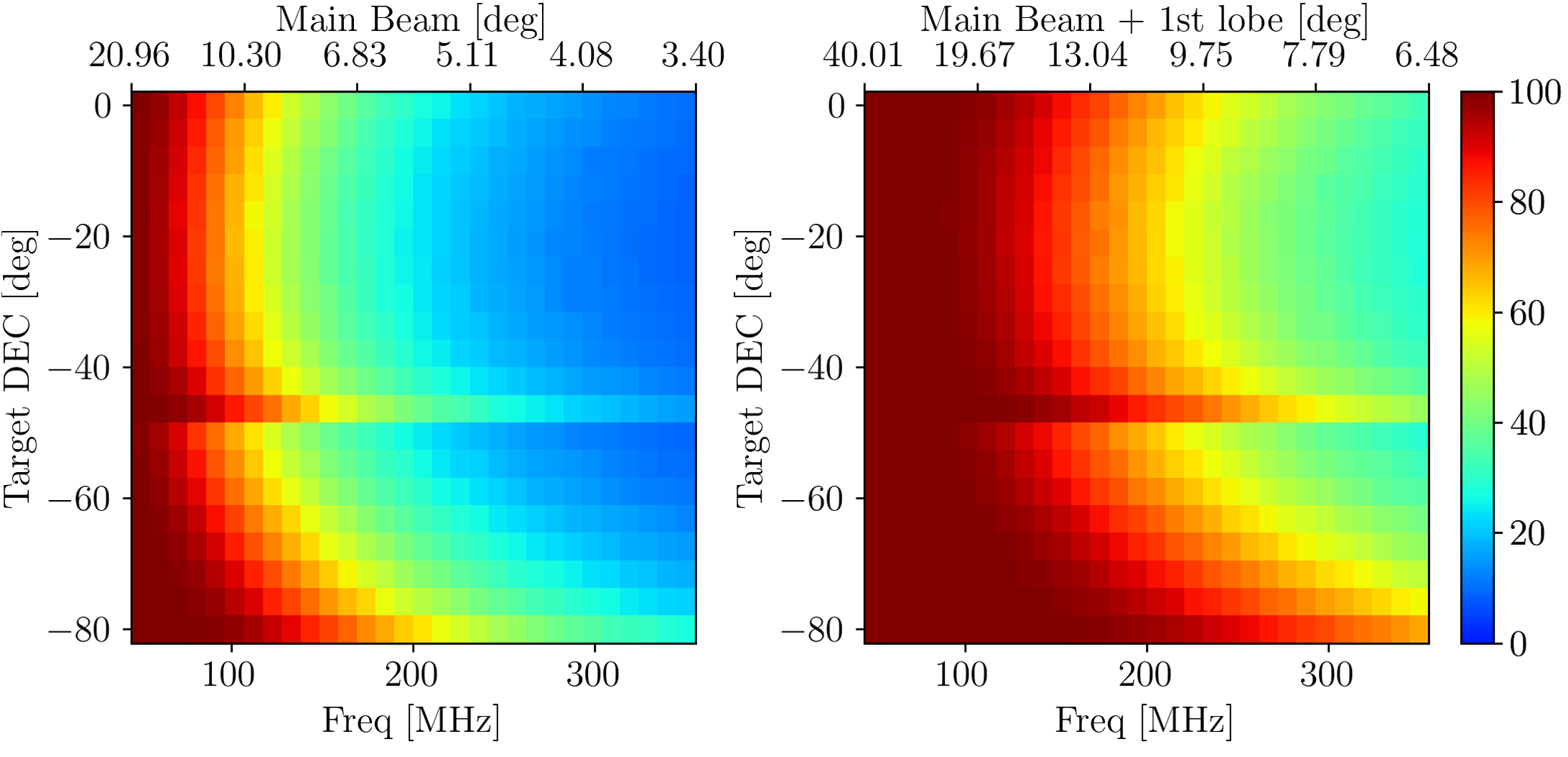

- The SKAO will be covered by almost all shells
- Significantly exposed to satellites at all frequencies, up to 100% below 100 MHz
- Flagging will not be an option -> RFI subtraction

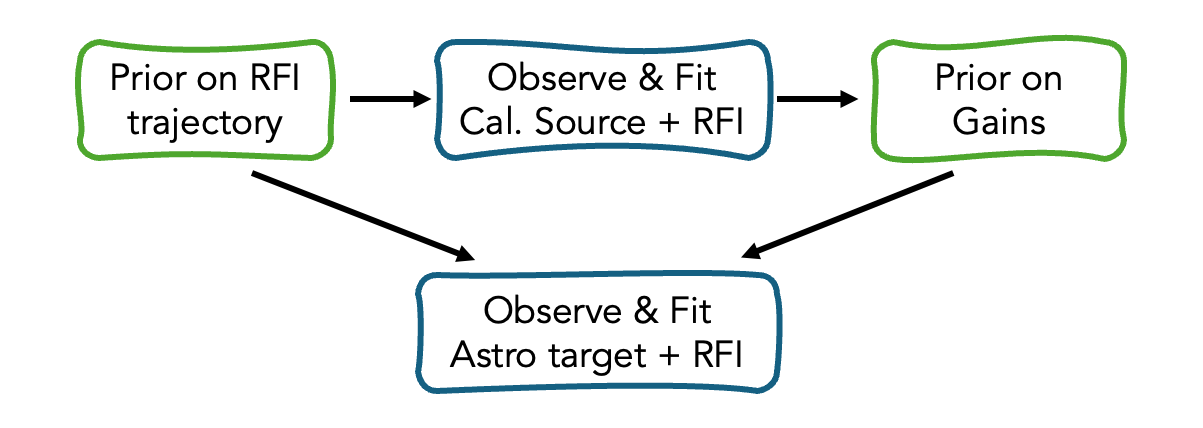

TABASCAL (Chris Finlay): forward model of telescope + RFI + astronomical sources. Joint fit at the visibility level.
- Improves Gain calibration
- Enable RFI modelling and subtraction

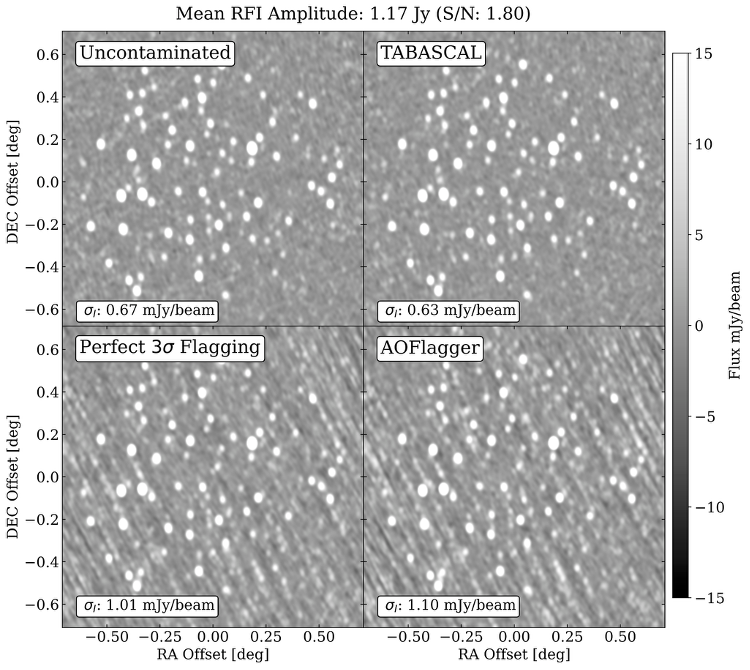

RFI subtraction vs flagging on MeerKAT simulated observations, in [Finlay+2025].
Satellites constellations - Takeaways
Trajectory-based RFI subtraction
- Satellites will be ubiquous in SKAO observations
- A serious threat for low frequency science
- Future work: forecast the RFI contamination from these constellations
Trajectory-based RFI subtraction
- Requires prior on satellite orbits and HPC resources
- Currently tested on real observations
(What also keeps me busy in Switzerland)
